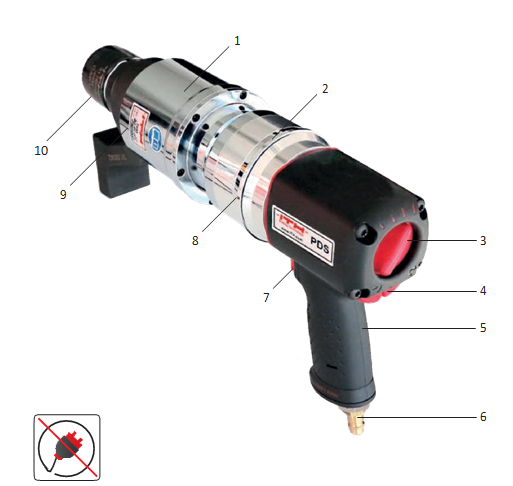

1. Compact, high-performance planetary gearbox
2. Air-poweredmotor
3. 4-step rotary-switch for preselection oftorque
4. Directional switch (tighten / loosen)
5. Impact-resistantandanti-slip pistol grip
6. Air high-pressure coupling
7. On/OffTrigger
8. Fine-tooth reaction arm. Optional: TWIN-Reaction arm, swivel foot, customized solutions available
9. Interchangeable sockets available, secured with clip
Functions:
No electric power supplies required. Pneumatic Motor can be powerd by standard air compressors.
Special version suitable for jobs inexplosion-risk areas: On demand the ITH PDS can be covered with a coating on the gearbox and reaction arm - ideal for applications in the oil and gasindustry.
The required torque is set via the compressed air precision control valve at idling according to the tabular data.
The change gear (high and low gear) enables a higher range of rotational speed (optional) and faster work.
Independent rotation between handle and gearbox ensures steady and optimal positioning of the ITH PDS.
|
ITH-Type |
ITH order no. |
Max. Torque |
Output drive A |
Gearbox diameterd ø |
PDS, straight** |
PDSw, angle ** |
||||||||
|
Length L |
Weight |
Length L |
Weight |
|||||||||||
|
[Nm] |
[ft·lb] |
[‘‘] |
[mm] |
[‘‘] |
[mm] |
[‘‘] |
[kg] |
[lb] |
[mm] |
[‘‘] |
[kg] |
[lb] |
||
|
PDS-25 |
2x.y0025 |
250 |
184 |
3/4 |
83 |
3.27 |
246 |
9.69 |
2.9 |
6.39 |
216 |
8.50 |
4.7 |
10.36 |
|
PDS-40 |
2x.y0040 |
400 |
295 |
3/4 |
83 |
3.27 |
271 |
10.67 |
3.8 |
8.38 |
238 |
9.37 |
5.2 |
11.46 |
|
PDS-75 |
2x.y0075 |
750 |
553 |
3/4 |
83 |
3.27 |
283 |
11.14 |
4.2 |
9.26 |
259 |
10.20 |
5.7 |
12.57 |
|
PDS-150 |
2x.y0150 |
1,500 |
1,106 |
1 |
90 |
3.54 |
307 |
12.09 |
4.5 |
9.92 |
280 |
11.02 |
6.8 |
14.99 |
|
PDS-250 |
2x.y0250 |
2,500 |
1,844 |
1 |
90 |
3.54 |
334 |
13.15 |
6.5 |
14.33 |
305 |
12.01 |
7.9 |
17.42 |
|
PDS-400 |
2x.y0400 |
4,000 |
2,950 |
1 1/2 |
95 |
3.74 |
372 |
14.65 |
7.9 |
17.42 |
338 |
13.31 |
9.1 |
20.06 |
|
PDS-600 |
2x.y0600 |
6,000 |
4,425 |
1 1/2 |
105 |
4.13 |
394 |
15.51 |
13.5 |
29.76 |
371 |
14.61 |
14.7 |
32.41 |
|
PDS-800 |
2x.y0800 |
8,000 |
5,900 |
1 1/2 |
127 |
5.00 |
447 |
17.60 |
16.8 |
37.04 |
417 |
16.42 |
21.0 |
46.30 |
|
PDS-1000 |
2x.y1000 |
10,000 |
7,376 |
1 1/2 |
127 |
5.00 |
447 |
17.60 |
16.8 |
37.04 |
417 |
16.42 |
22.2 |
48.94 |
|
PDS-1400 |
2x.y1400 |
14,000 |
10,326 |
2 1/2 |
180 |
7.09 |
503 |
19.80 |
42 |
92.59 |
480 |
18.90 |
27 |
59.52 |
|
PDS, straight: |
x = 6 |
With change gear: |
y = 0 |
|
|
PDSw, angle: |
x = 7 |
Without change gear: |
y = 1 |
**Without change gear |
